FRAMESET

• Sizes: 1 size Medium
• Material: Valen 6061 hydroformed aluminum with, external downtube battery and replacable derailleur hanger.
• Fork: Rigid Triple Clamp Steel fork.

WHEELSET

• Rims: 20" single-wall aluminum 36H, for disck brake
• Hubs: F: Aluminum bolt-on with 17mm axle nuts. 36 hole
• Spokes: 13G w/brass nipples
• Tires: 20x4" Fat MTB with puncture protection and reflective sidewall

E-POWER SYSTEM

• Motor: 750W rear hub
• Battery: 500Wh/48VLG 21700 cells; Charge on or off bike
• Display: Left mounted color LED
• Charger: 48V/2A
• 48V/750W range: Up to 49 miles
• Assist Levels: 1-5 PAS, Throttle and walk-mode

DRIVETRAIN

• Crankset: 3-Piece aluminum w/steel 38T chainrings with double alloy chainguard

• Chain: KMC SIngle Speed
• BB: Sealed cartridge
• Freewheel/Cog: Single Speed 18T

COMPONENTS

• Headset: 1-1/8” semi-integrated threadedless
• Brakes:

• Tektro mechanical with 180mm rotors and semi-metalic pads

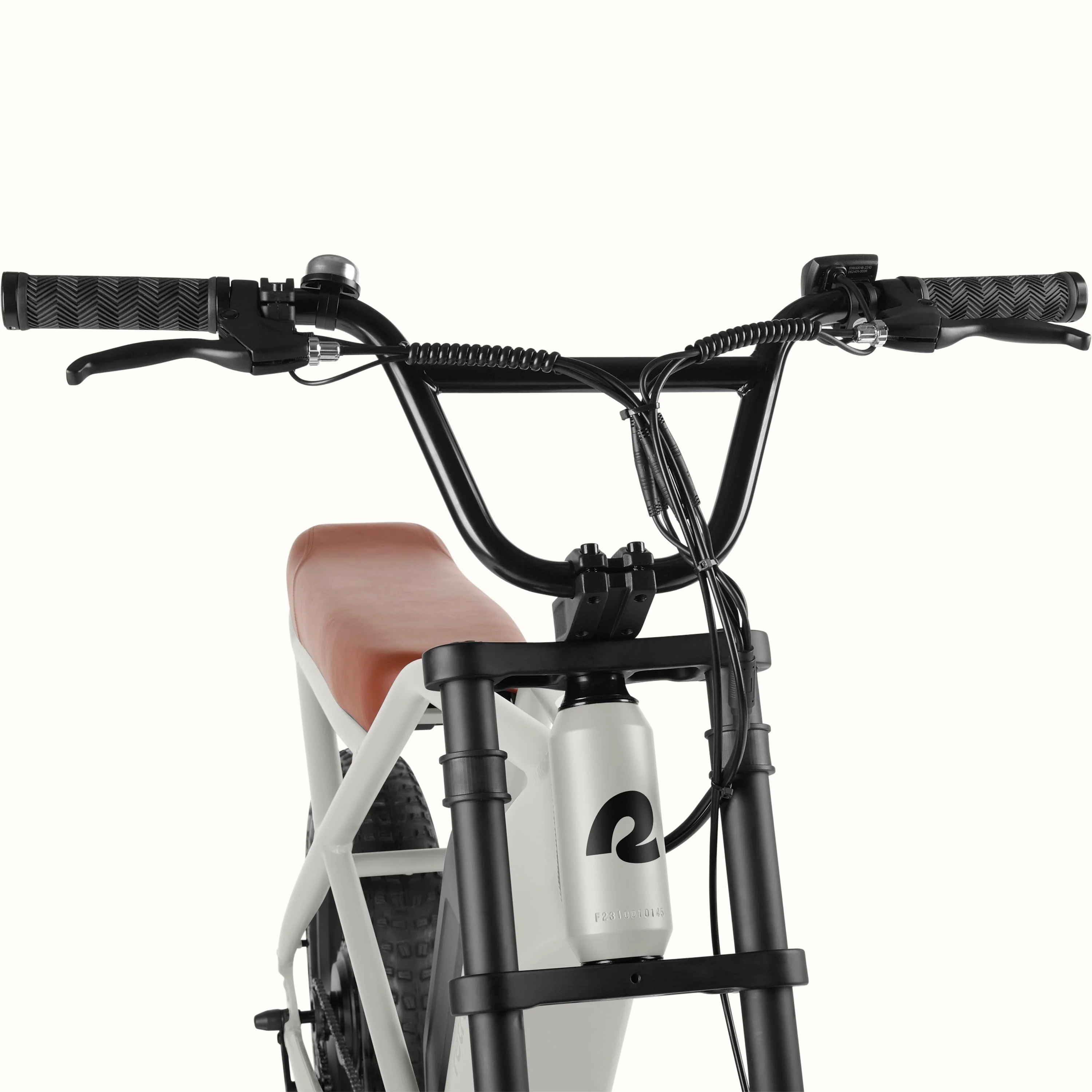

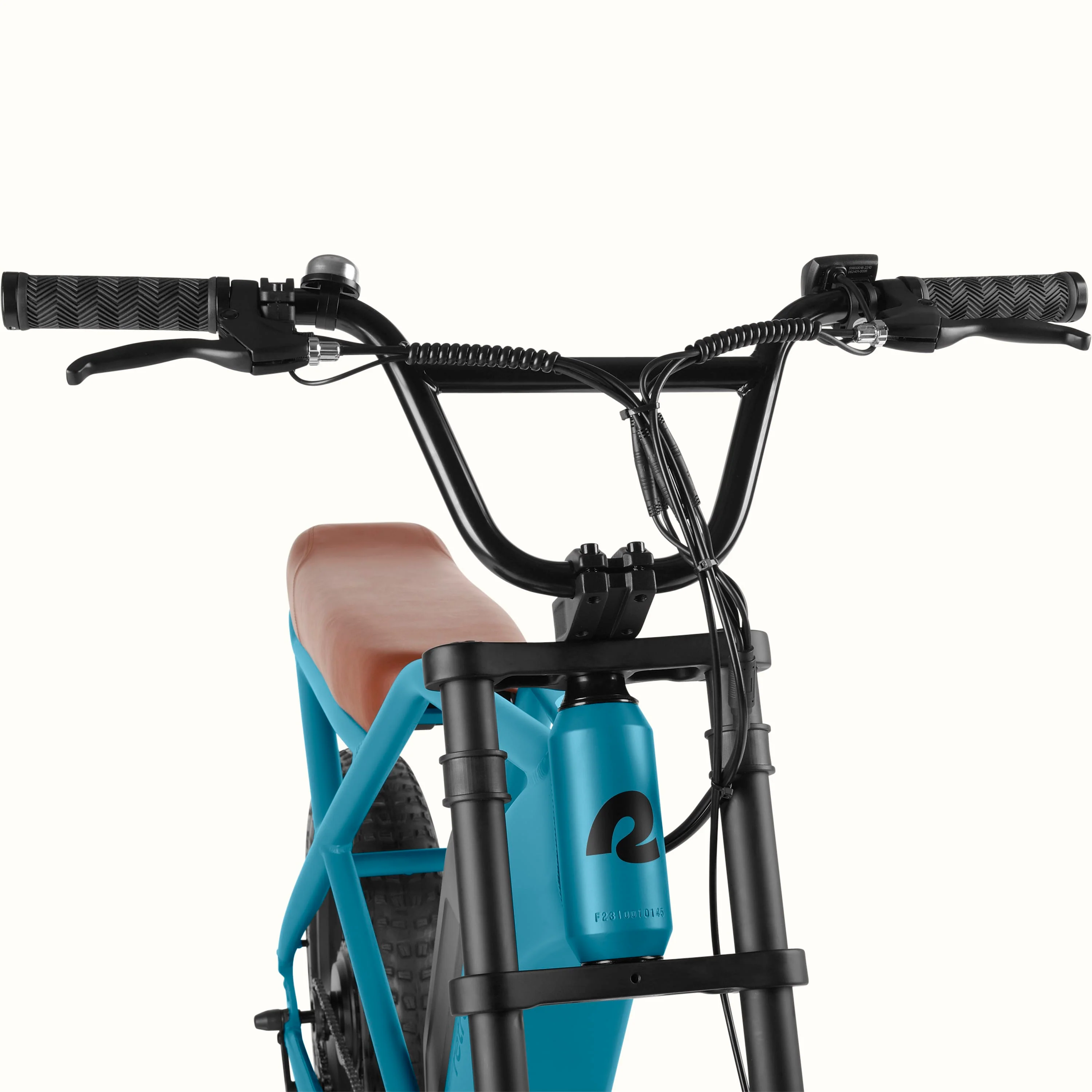

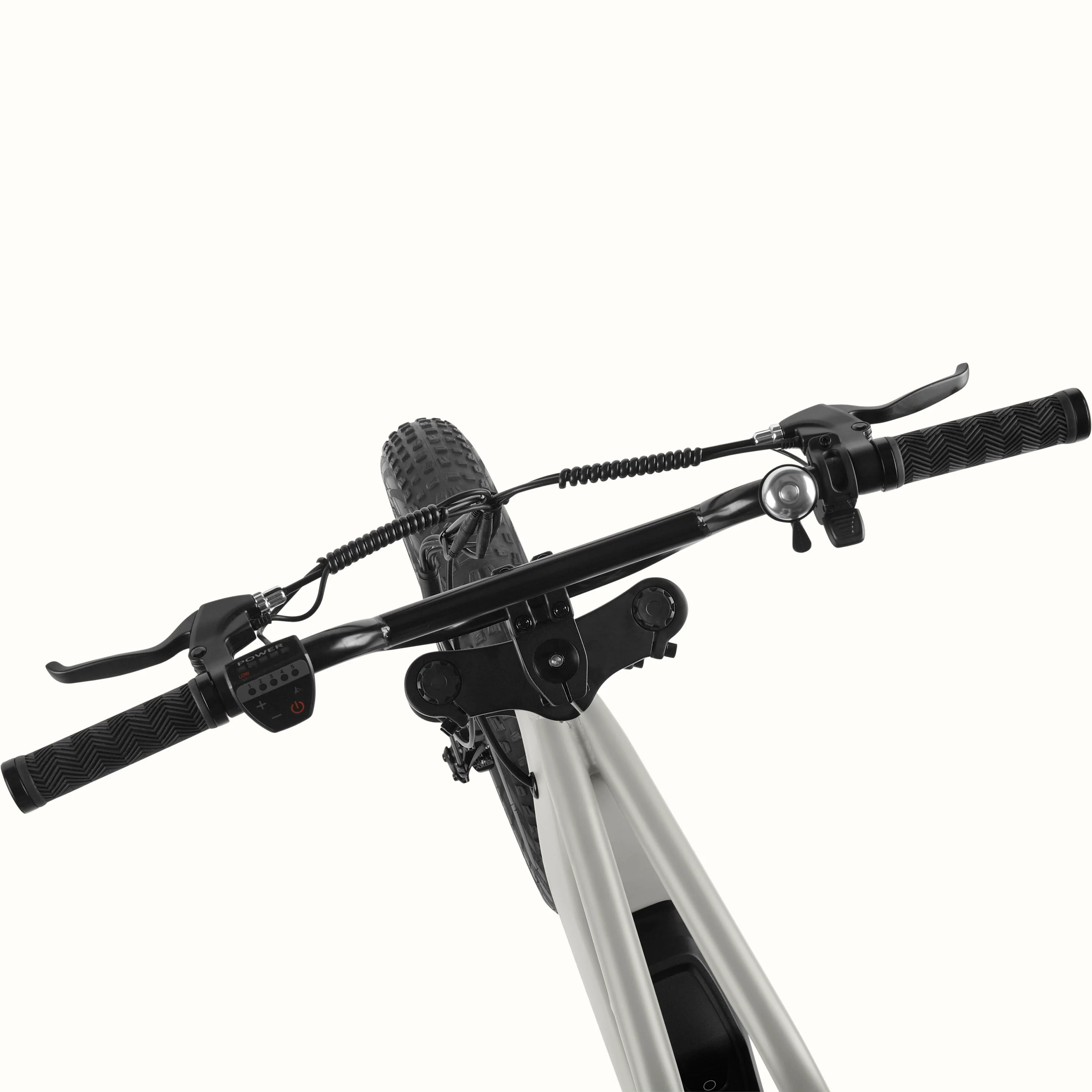

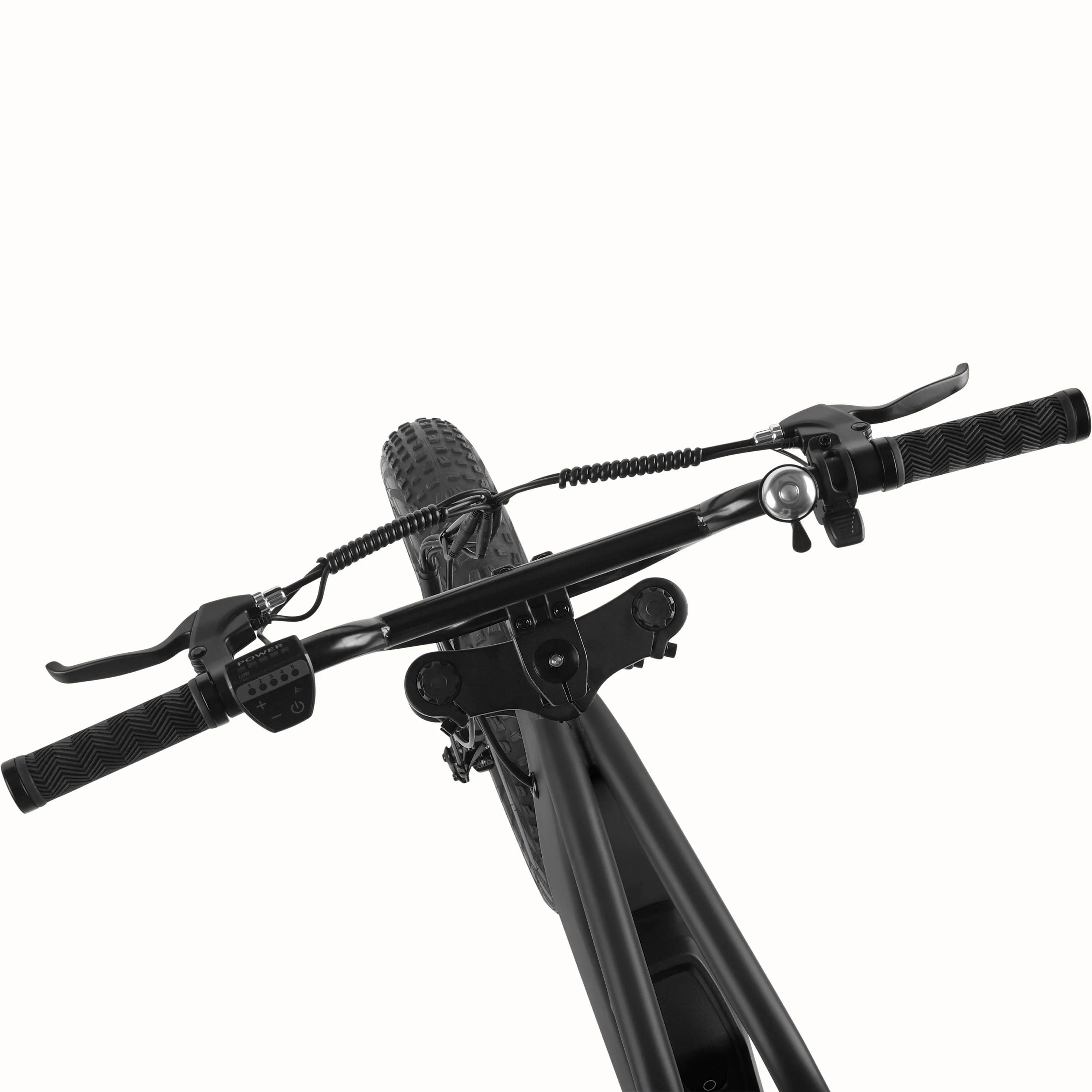

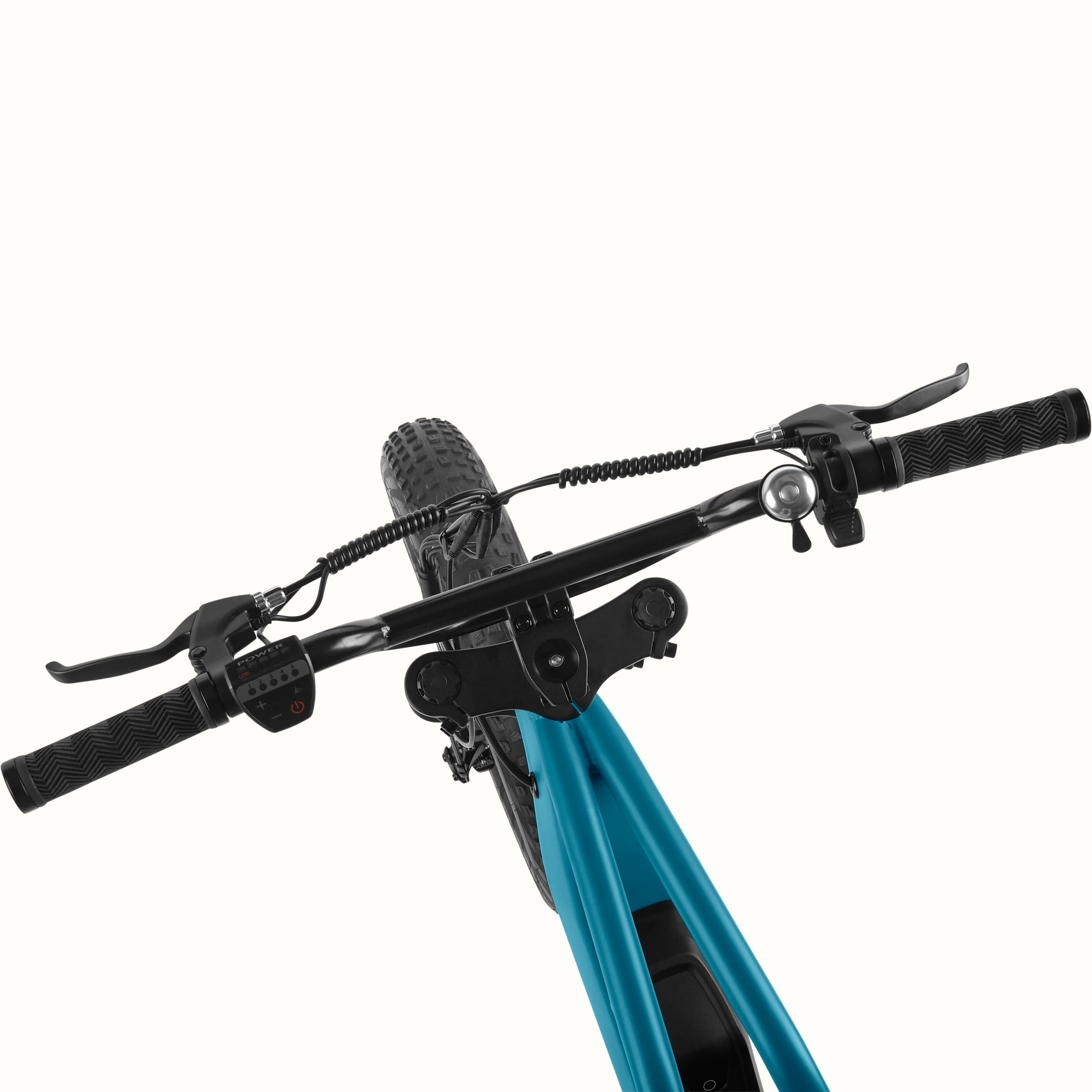

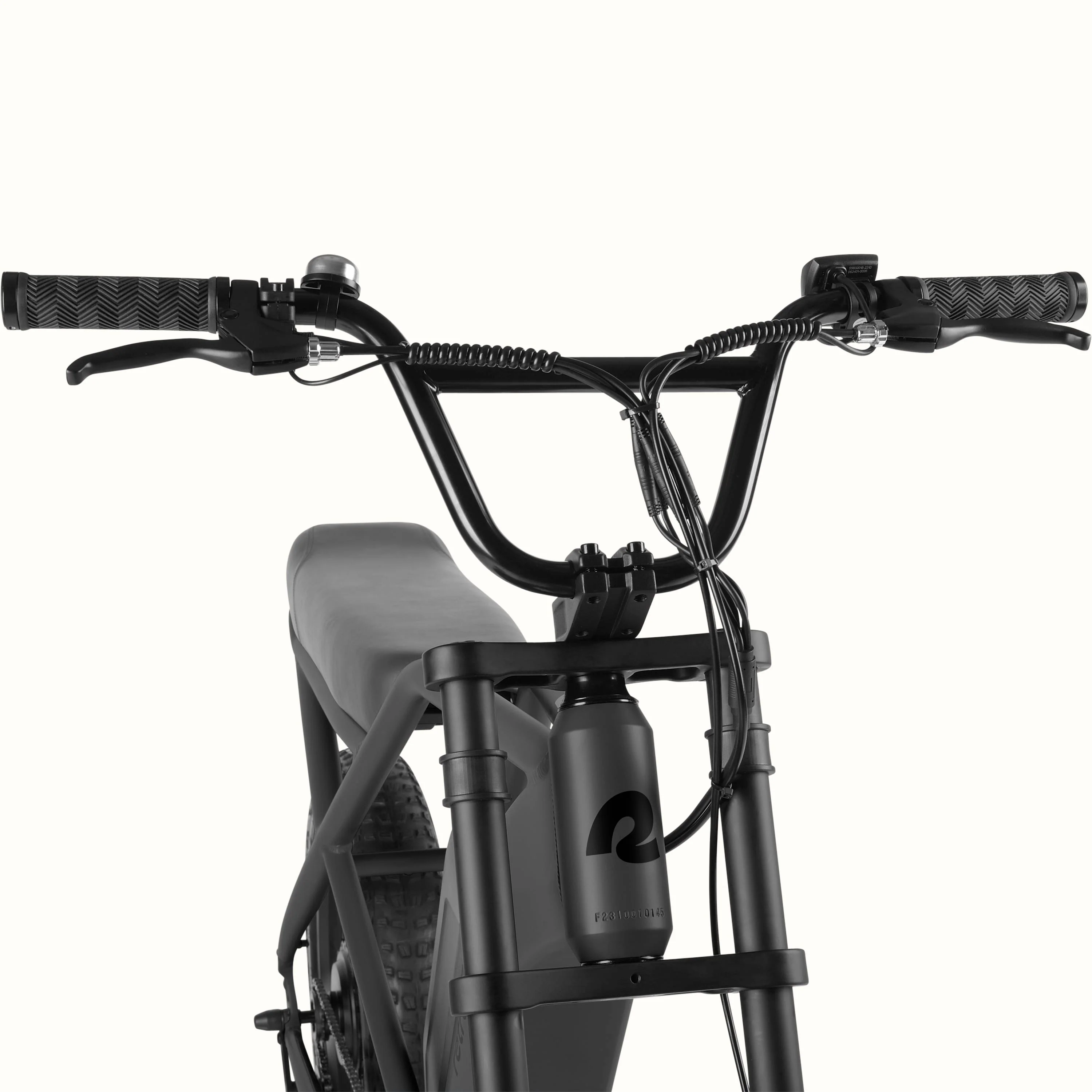

• Handlebars: Steel BMX
• Grips: Lock-on comfort grips.
• Stem: BMX Die Cast Alloy 22.2mm clamp
• Saddle: Retrospec Custom Moto
• Pedals: PP plateform with non-slip tread

EXTRAS

• Kickstand: Aluminum chainstay mounted, 40MM bolt pattern
• Accessories: tool kit
• Recommended Weight Limit: 350lbs
• Item Weight: 72 lbs (battery included)
